The IO tube endforming machine is a hydraulic machine for the precise sizing of tube ends or for the forming of profiles.

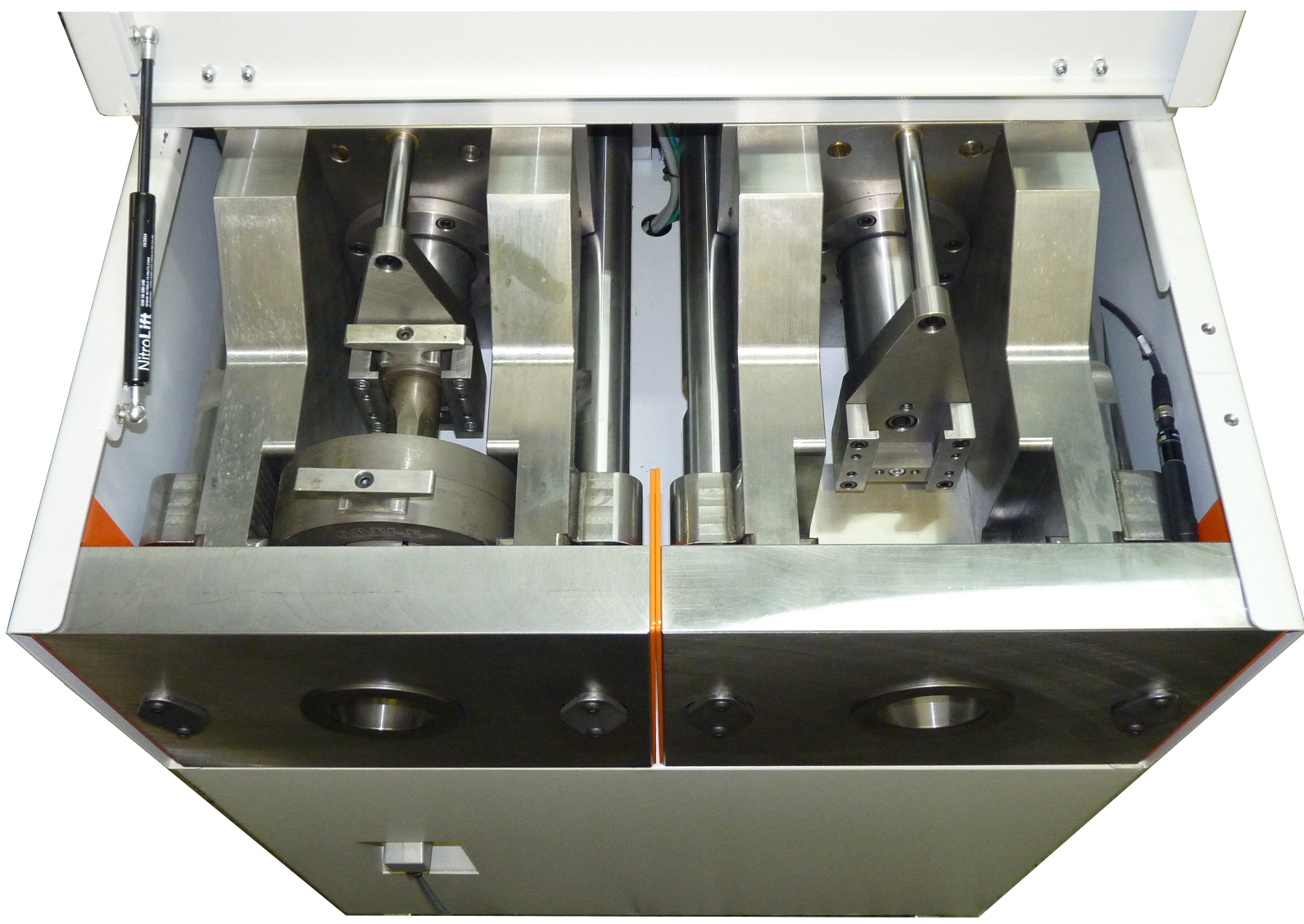

The tube forming is achieved by way of two hydraulic rams. Each ram drives a set of 8 way segmented fingers against a tapered mandrel. The outside of the tube is formed against reducing fingers whilst the inside is formed against expanding fingers.
The machine operates the I and O operations alternately until the tube is formed to the desired size. The order of the operations is selectable via the front control panel.
The machine features manual adjustment of the forming ram stroke via a stop nut on the back of the forming ram. There is a separate stop nut for both the I and O ram.
A plug in foot pedal at the front of the machine controls the auto cycle. The machine I-O sequence is configurable via hmi
The machine uses the industry standard Eagle tooling.

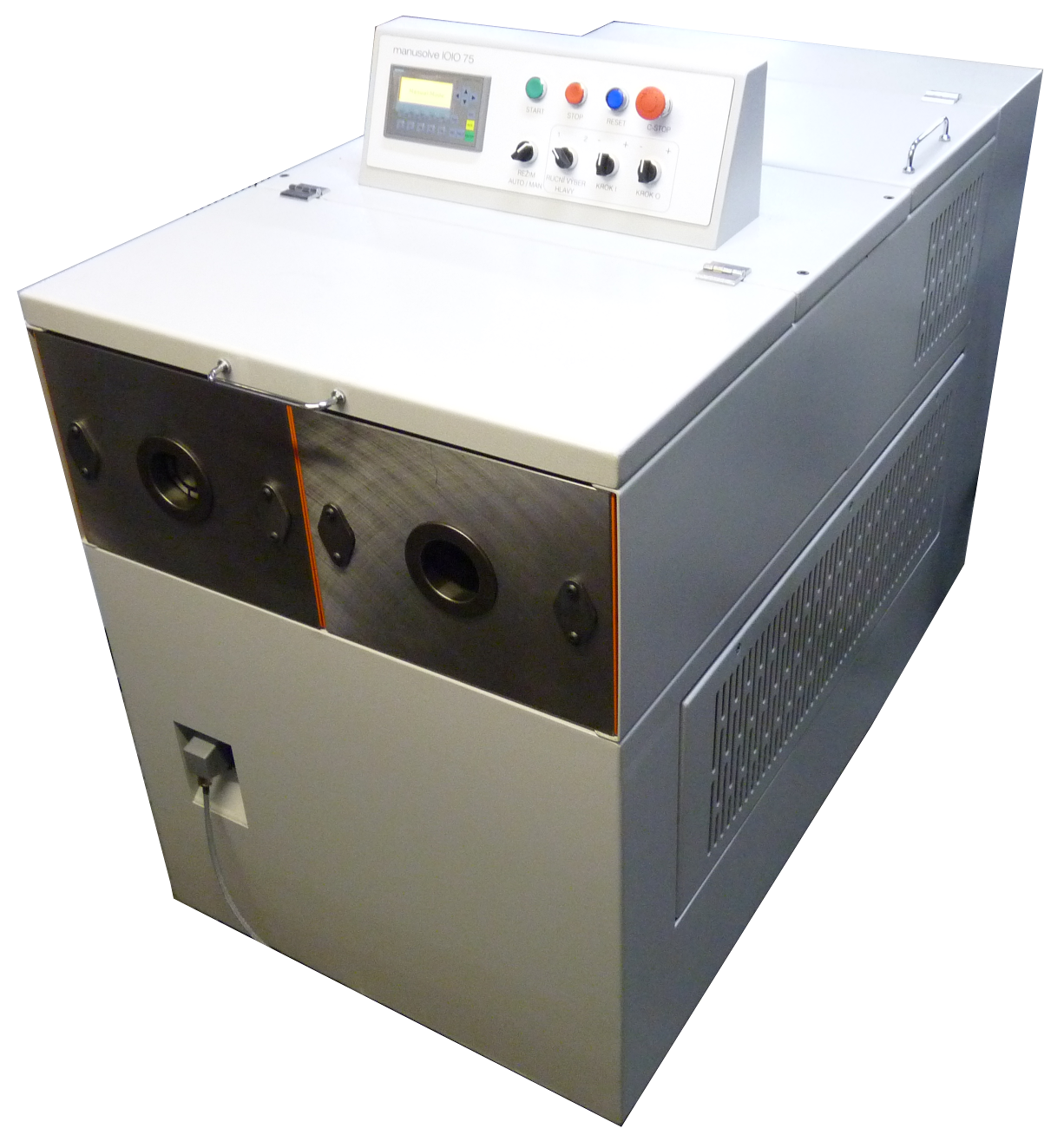

The machine is also available with 2 heads - IOIO75
Options
- Oil Cooler
- Hydraulic Motor Inverter drive for improved power consumption
- Paint colour to customer specification
Typical Specifications
Dimensions IO75: W D H 525 X 1475 X 1500 mm
Dimensions IOIO75: W D H 825 X 1475 X 1500 mm
Weight: 900KG (without oil)
Oil Capacity IOIO75: 190L
Oil Capacity IO75: 120L
Motor: 7.5 KW IE3 Energy Rated (IEC standard)
Electricity Supply: 3 Phase 380/415V 32A
Safety: Schmersal SafetyPLC
Control System: Schneider Switch Gear 24V DC, Siemens S7-1200
Safety Standards: ISO 13849, ISO 12100:2010
Legal Conformity: CE
